sequenceDiagram
   Prototyping ->> Order: We need to come up with a working prototype by next week
   Order ->> Code: ITM - decide the scope (more or less)
   Order ->> Design: Case? No case?
   Design ->> Presentation: Slides

---

Heads up!

we got two fucking weeks

---

Features

Part	Function
NFC/RFID transceiver	Copying cards
433 MHz transceiver	Replay attacks
HID (RP2040 and ESP32-C3 support this)	Rubber ducky
==NOTE THAT ESP32 BASIC DOESN'T==

---

Anything else come to mind?^*

_{* Keep in mind that we have 2 fucking weeks}

---

RP2040

• We can reuse the macro pad schematic!
• Seems like a little bit of an advanced project for it, might be slow

ESP32

• We can do network stuff!
• Doesn't seem much more difficult than the RP2040.

---

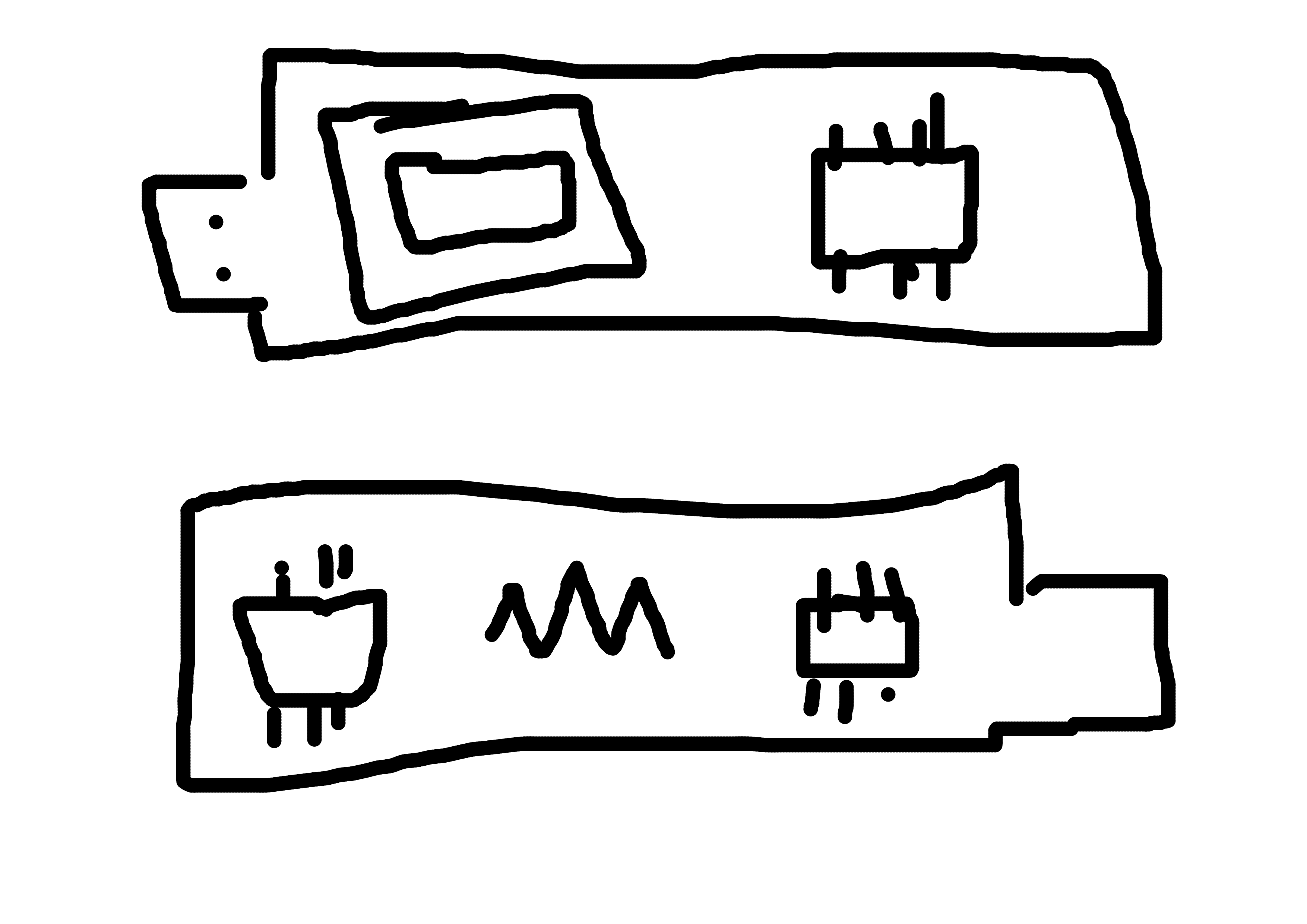

Design

• Screen (we got 50)
• MCU
• Antenna (used by both the NFC and 433Mhz tranceivers)
• The transceivers

Terminated by a male USB-A

Should we include a case?

This question is mostly for Mihai as it involves him designing it.

---

--- ## Code Let's discuss a potential scope for the project! - Do we **only** provide bindings for the sensors? - Will the attendees be building anything? If yes, **what**? - C? Micropython?

---

Let's distribute!

If we want to achieve anything given the short timeframe[^1], we're gonna need to copy the GAPC model.

GitHub issues!

1 (CircuitRee trademarked statement)

---

We got this!
